R540
CONSTRUCTION
Call for Pricing

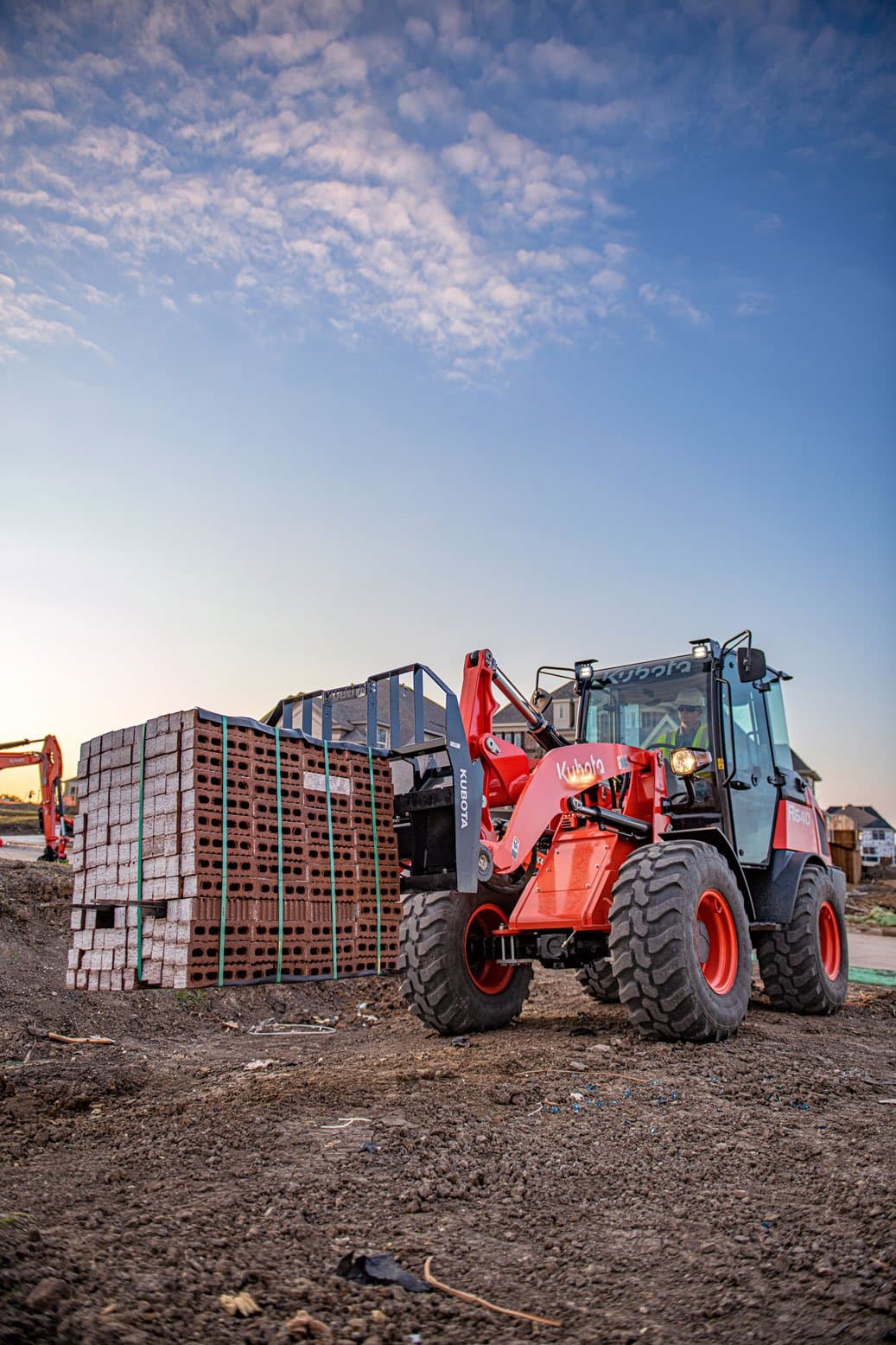

As graceful as a dancer and built like a heavy-weight, the Kubota R540 easily navigates crowded work sites and flexes its muscle wherever it’s needed. The wheel loader sports a hearty 51.1 horsepower and a breakout force of 7,761 pounds, all while keeping you comfortable in its spacious cab. Climb on in-- it’s time for work.
Special Offers
Stand Alone Financing Installment Program
Implement Stand Alone Financing
Customer instant rebate for Farmer Veteran Coalition members.
Farmer Veteran Coalition Rebate
*Not Available for National Accounts or Government Customers
LOW-RATE RENTAL BUSINESSES*
$0 Down, 0% A.P.R. for up to 60 Months or Save up to $6,000 on Construction Equipment!
Construction
Save up to $3000 or 0% A.P.R. for up to 36 Months ON R SERIES!
WHEEL LOADERS
New Features
- High Visibility Cab - enlarged front glass, full size right side window
- LED Working Lights - moved from Halogen to LED lights; LED lights now standard
- NEW Delta Shaped Loader Arms - Improves visibility when attaching to an implement or attachment; Also, improves strength and rigidity of the loader arms
- More Spacious Cab - moved switch console from the steering column to the right side of the cab - enhancing leg and foot space in the cab
- Reconfigured Console & Switch Layout - switch console now on the right side of the cab; everything needed to operate and run the wheel loader is now located on the right hand side and is a fingertip away
Specifications
Angle Of Rear Frame Oscillation (deg.)
Articulation Angle (deg.)
Auxiliary Hydraulic Pressure Psi, Kgf (cm2)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
Brakes ( Service)
Bucket Breakout Force, Lbs (k N)
Displacement (cu. In.)
Dump Height At Fully Raised Position, Ft
Emission Certification
Engine
Frame Oscillation Angle
Front/ Rear Axle Traction Lock
Fuel Tank, Gal (l)
Ground Clearance, In (mm)
Hinge Pin Height, Ft
Hydraulic Reservoir, Gal (l)
Hydraulic System, Gal (l)
Lifting Capacity At Ground Level, Lbs (k N)
Loader Clearance Circle, Ft (mm)
Loader Raise / Lower Time, Sec
Maximum Dump Angle
Operating Weight, Lbs (kg)
Output ( S A E J1349 Net) H P/(k W)/rpm
Output ( S A E J1995 Gross) H P/(k W)/rpm
Overall Height, Ft (mm)
Overall Length, Ft (mm)
Overall Width, Ft (mm)
Rated Operating Capacity, ( R O C)
Reach Fully Raised At Maximum Dump Angle, Ft
Standard Bucket Capacity, Yd3
Standard Tire Size, In
Steering Angle
Tipping Load - Straight, Lbs (kg)
Tipping Load- Full Turn, Lbs (kg)
Traction Force, Lbs (kgf)
Transmission Type
Traveling Speed: High, Mph (kph)
Traveling Speed: Low, Mph (kph)
Turning Radius Track Circle, Ft (mm)
Angle Of Rear Frame Oscillation (deg.)
±8
Articulation Angle (deg.)
40 (each direction)
Auxiliary Hydraulic Pressure Psi, Kgf (cm2)
2683 (18.5)
Auxiliary Hydraulics Flow Rate, G P M ( L P M)
14.2 (53.8)
Brakes ( Service)
Enclosed wet disc
Bucket Breakout Force, Lbs (k N)
8183 (36.4)
Displacement (cu. In.)
160
Dump Height At Fully Raised Position, Ft
8ft 3in
Emission Certification
Tier 4 Final
Engine
V2607
Frame Oscillation Angle
8 degrees
Front/ Rear Axle Traction Lock
Diff-lock (both axles)
Fuel Tank, Gal (l)
18.5 (70)
Ground Clearance, In (mm)
13in (330)
Hinge Pin Height, Ft
10ft 7in
Hydraulic Reservoir, Gal (l)
10.3 (39)
Hydraulic System, Gal (l)
15.1 (57)
Lifting Capacity At Ground Level, Lbs (k N)
6767 (30.1)
Loader Clearance Circle, Ft (mm)
13ft 8in (4175)
Loader Raise / Lower Time, Sec
6.5 / 4.5
Maximum Dump Angle
45 degrees
Operating Weight, Lbs (kg)
9888 (4485) / 10285 (4665)
Output ( S A E J1349 Net) H P/(k W)/rpm
47.9 (35.7) / 2400
Output ( S A E J1995 Gross) H P/(k W)/rpm
50.9 (38) / 2400
Overall Height, Ft (mm)
8ft 1in (2453) / 8ft 2in (2473)
Overall Length, Ft (mm)
17ft 8in (5395)
Overall Width, Ft (mm)
5ft 7in (1712)
Rated Operating Capacity, ( R O C)
2822/2968/2183/2293
Reach Fully Raised At Maximum Dump Angle, Ft
2ft 6in
Standard Bucket Capacity, Yd3
0.85
Standard Tire Size, In
12.5-18
Steering Angle
40 degrees
Tipping Load - Straight, Lbs (kg)
6437 (2920)/6768 (3070) / 4960 (2250)/5202 (2360)
Tipping Load- Full Turn, Lbs (kg)
5644 (2560)/5930 (2690) / 4365 (1980)/4586 (2080)
Traction Force, Lbs (kgf)
6541 (29.1)
Transmission Type
Hydrostatic transmission
Traveling Speed: High, Mph (kph)
12.4 (20.0)
Traveling Speed: Low, Mph (kph)
3.0 (4.8)
Turning Radius Track Circle, Ft (mm)
11ft 11in (3620)
